Applicable scope

As the professional manufacture, XUCKY would like to provide you impulse relays. BIR series impulse relay coils are triggered by impulses and the contacts are closed. The product has two stable mechanical positions, and the contacts will open temporarily with the next impulse. Each received impulse will reverse the position of the contact and can be controlled by an unlimited number of buttons. And has the characteristics of zero power consumption. Impulse relay can be used to control the lighting circuit through the button. The circuit consists of incandescent lamps, halogen lamps, etc.

(resistive load); fluorescent lamps, discharge lamps, etc. (inductive load). Conform to standard: IEC/EN 60669-2-1,IEC/EN 60669-2-2

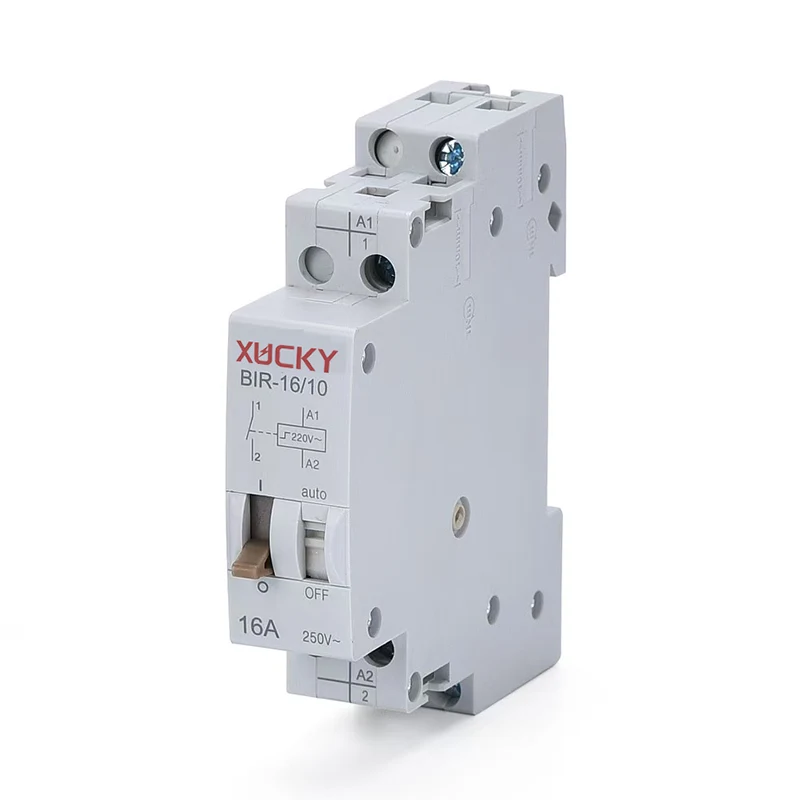

BIR Impulse relays

● Reliable Quality

Continue operation Impulse Relays 10000 times action reliable and accurately respond to commands.

● Hum Free

Reduce the Pull-in noise.

● Hide the clamp holder

The concealed lamp had patented make an auxiliary that is more flexible and easy to mounting,which not only improves the aesthetics of the product,but also increases the strength of the device.

● Class H high temperature resistant enameled wire

Automatic winding process to ensure reliable opening and closing of the coil.

● Easy Operation

Through O-1 shift to priority manual control directly. The handle position as mechanical indicator.

Pulse relays are used for:

The coil of a impulse relays are triggered by a pulse, and its contacts are closed

There are two stable mechanical positions, and the contacts will open when the next impulse arrives. Each received pulse will reverse the position of the contacts.

It can be controlled by an unlimited number of buttons.

"Zero power consumption"

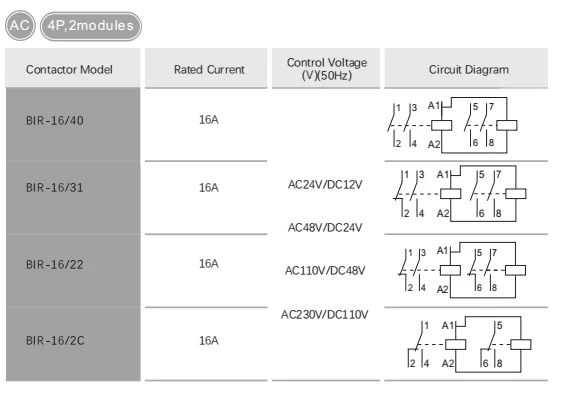

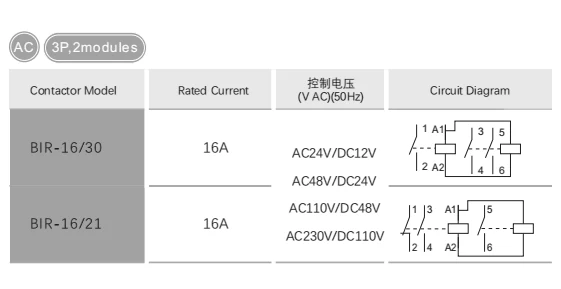

Product specification

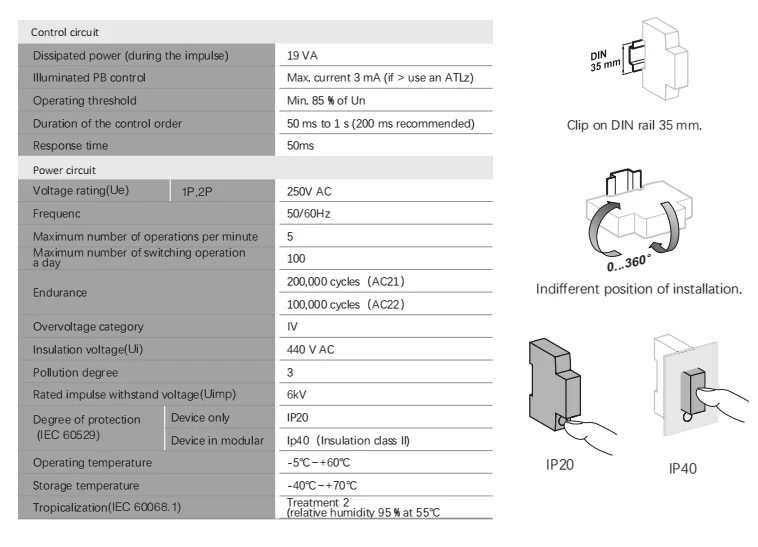

Main parameter and technical performance

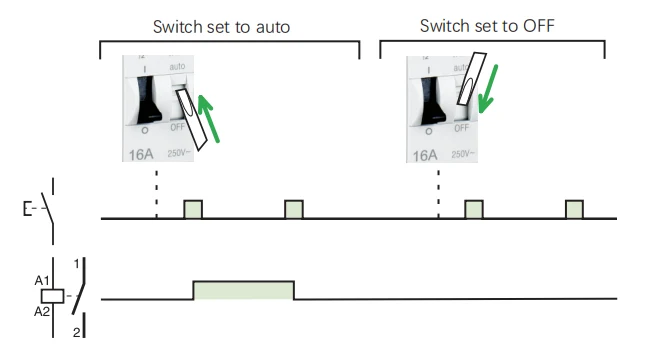

Operation(lmpluse relay)

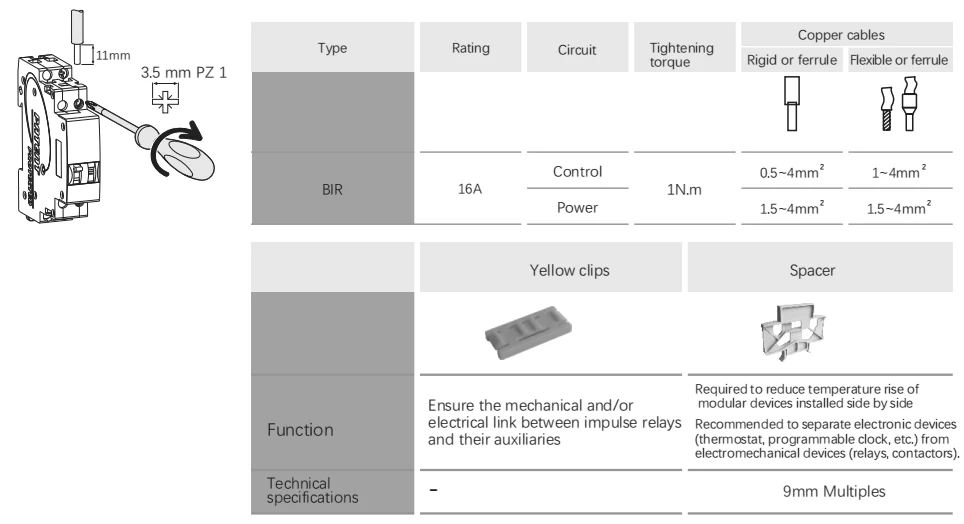

Impulse relay connection and auxiliary

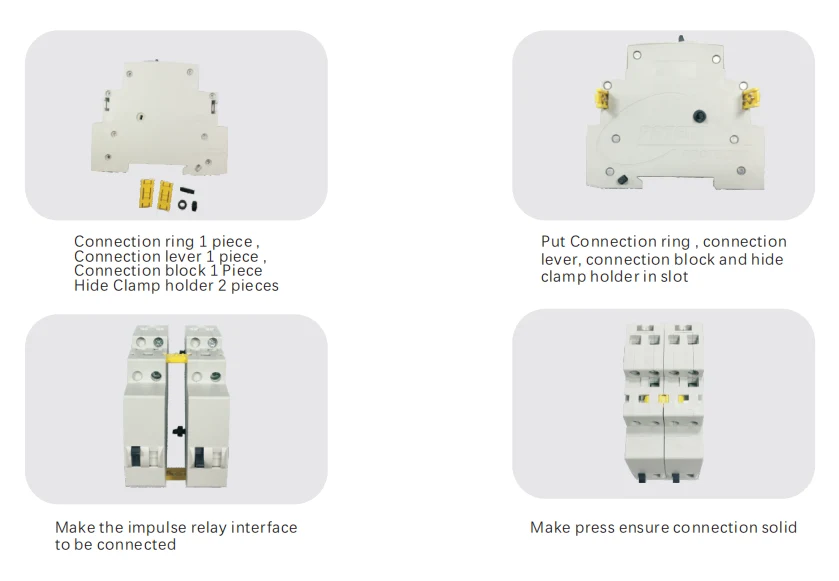

Impulse relay multi-pole connection description

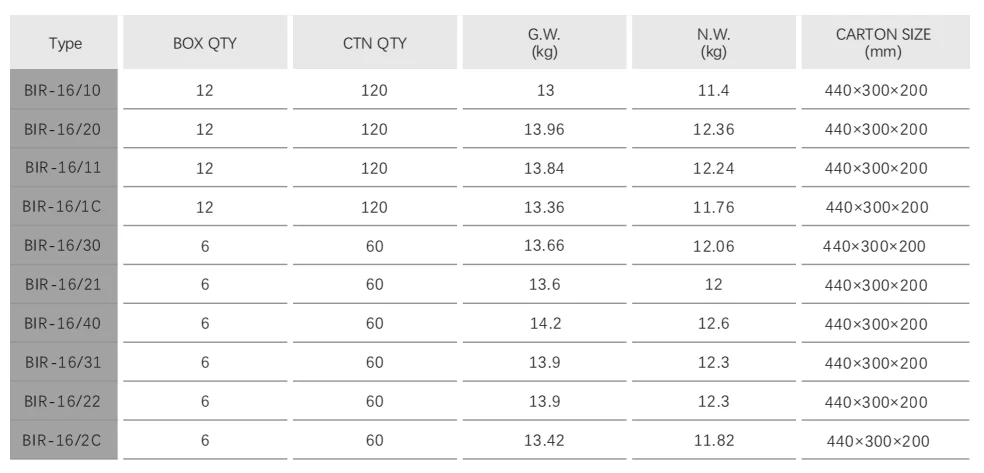

Packing information

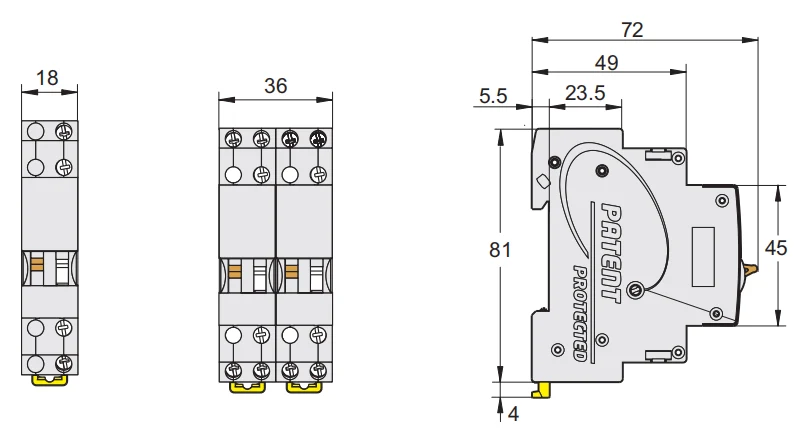

Product dimensions (mm)
